CC2651P31T0RGZR

The SimpleLink CC2651P3 device is a single-protocol 2.4-GHz wireless microcontroller (MCU) supporting Zigbee, Bluetooth5.2 Low Energy, IEEE 802.15.4g, TI 15.4-Stack (2.4 GHz). The CC2651P3 is based on an Arm Cortex M4 main processor and optimized for low-power wireless communication and advanced sensing in grid infrastructure, building automation, retail automation, personal electronics and medical applications.

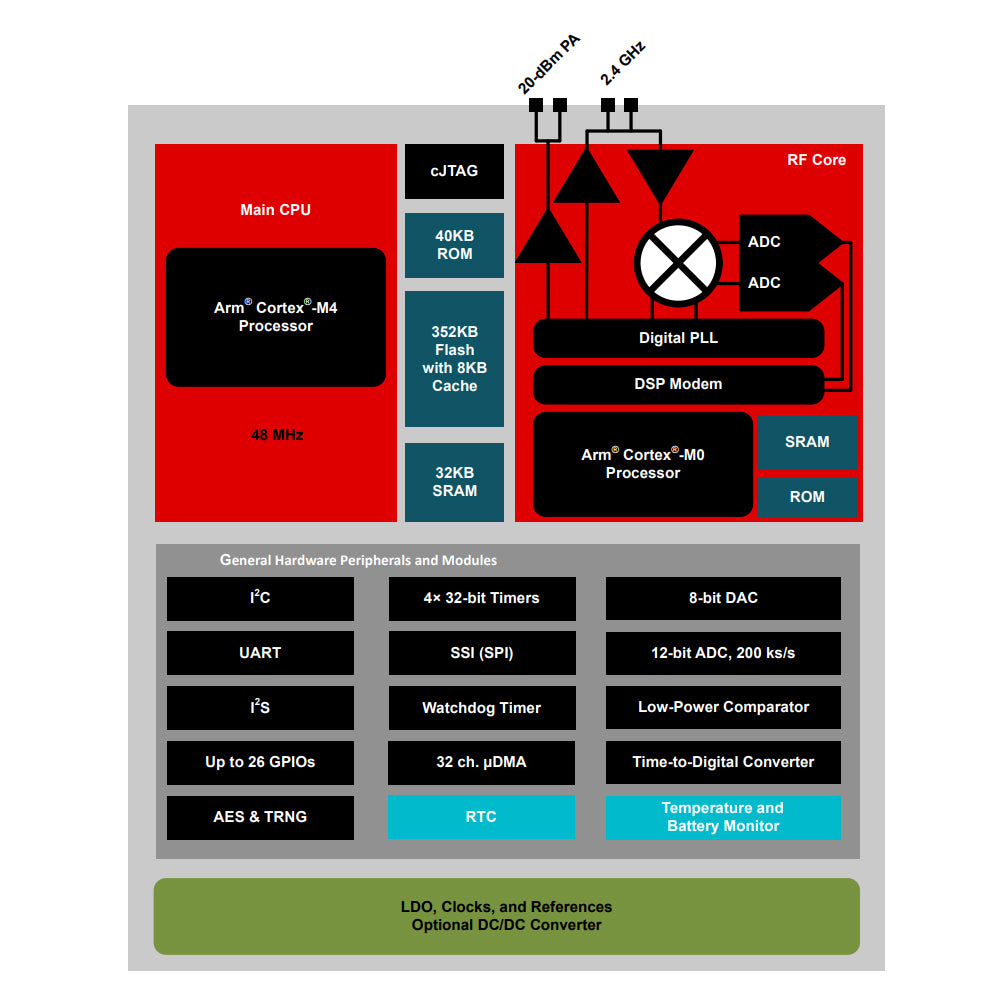

The CC2651P3 has a software defined radio powered by an Arm Cortex M0, which allows support for multiple physical layers and RF standards. The device supports operation in the 2360 to 2500-MHz frequency band. The CC2651P3 has an efficient built-in PA that supports +10 dBm TX at 21 mA and +20 dBm TX at 101 mA (7x7 package). CC2651P3 has a receive sensitivity of -104 dBm for 125-kbps Bluetooth Low Energy Coded PHY.

The CC2651P3 has a software defined radio powered by an Arm Cortex M0, which allows support for multiple physical layers and RF standards. The device supports operation in the 2360 to 2500-MHz frequency band. The CC2651P3 has an efficient built-in PA that supports +10 dBm TX at 21 mA and +20 dBm TX at 101 mA (7x7 package). CC2651P3 has a receive sensitivity of -104 dBm for 125-kbps Bluetooth Low Energy Coded PHY.

Download the data sheet：

https://cdn.shopify.com/s/files/1/0746/3033/2658/files/cc2651p3.pdf?v=1743049501
