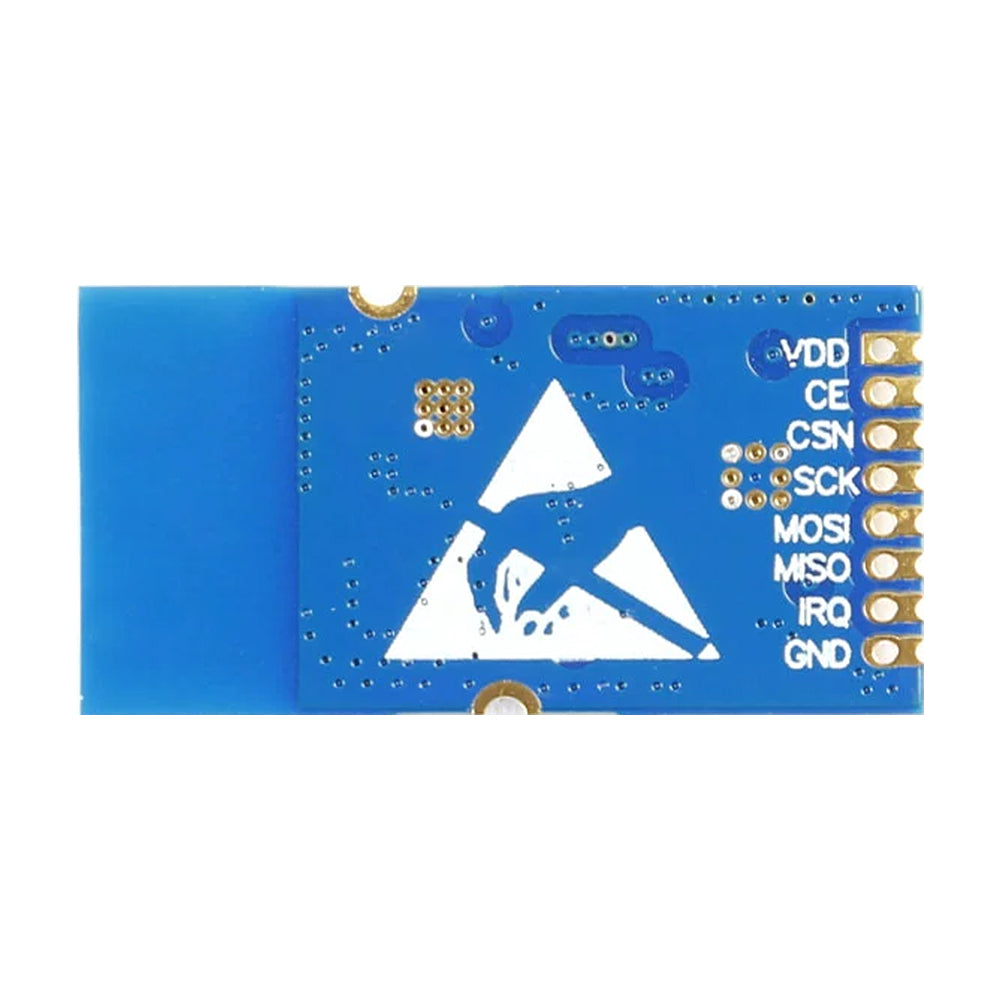

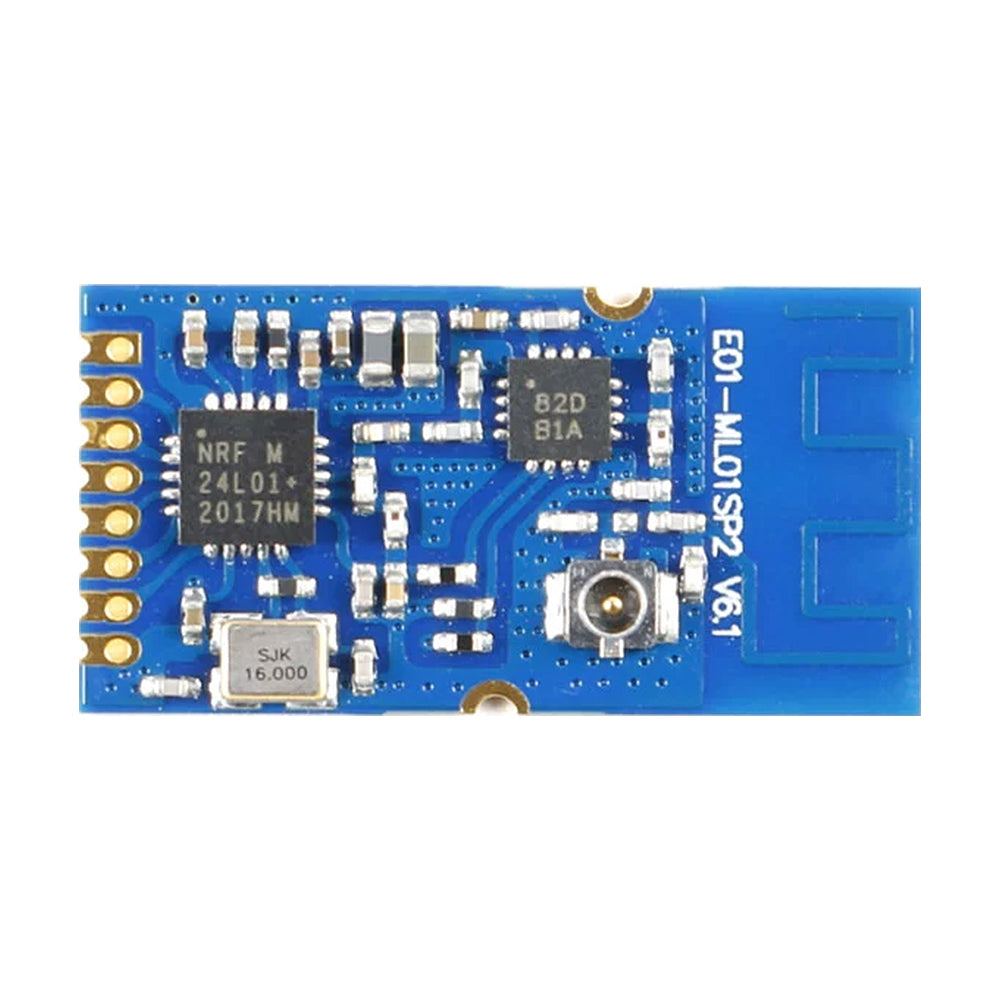

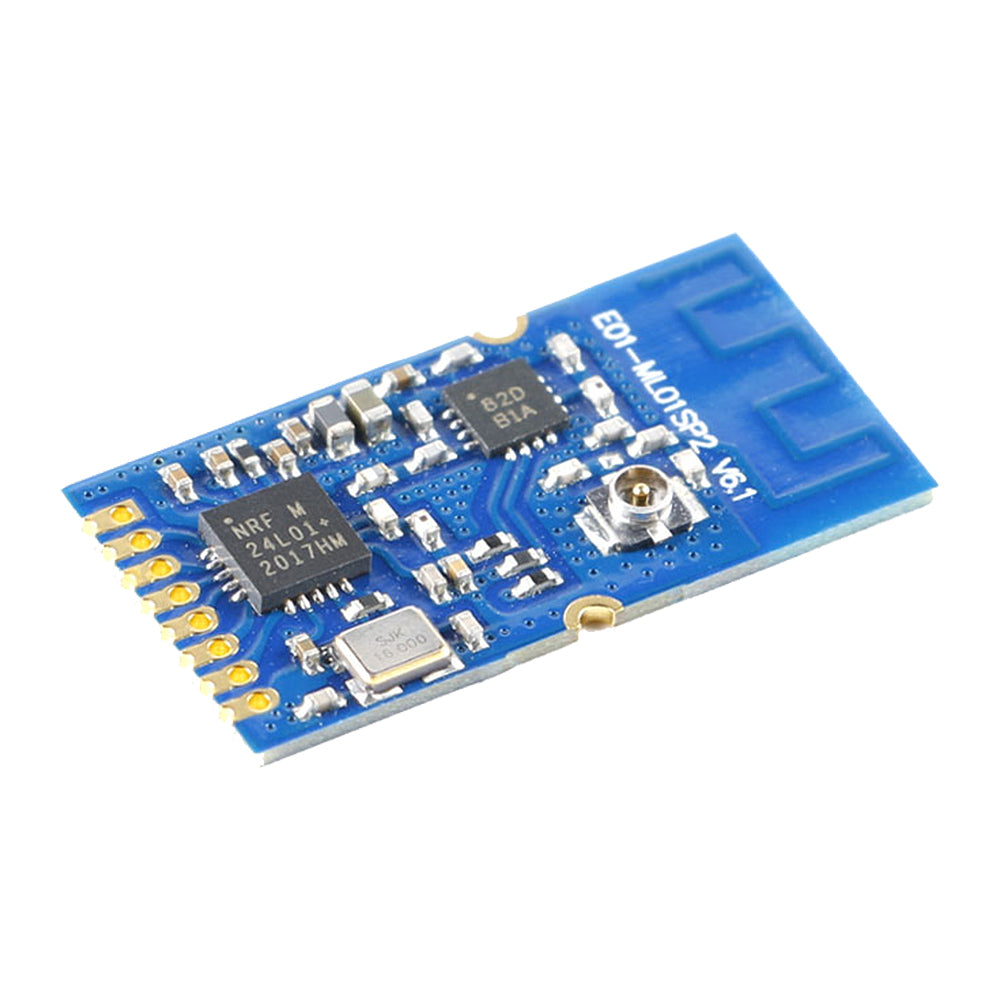

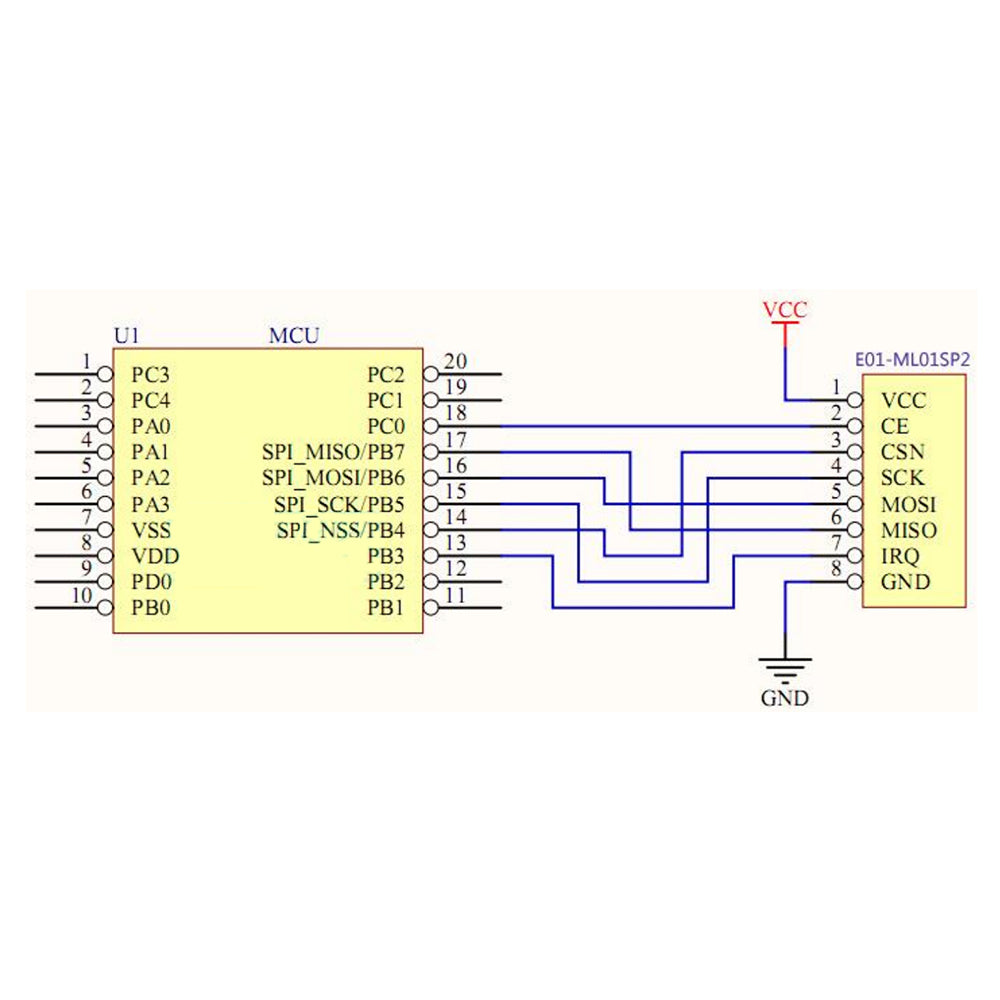

The E01-ML01SP2 is a small-sized, 2.4GHz SMD wireless module with an integrated PCB antenna, based on the Nordic nRF24L01P chip, which is developed independently. It has a maximum transmission power of 100mW. Using the original imported nRF24L01P chip ensures compatibility, and the module is equipped with an integrated power amplifier (PA) and a low-noise amplifier (LNA). This not only achieves a maximum transmission power of 100mW but also enhances receiving sensitivity, significantly improving overall communication stability compared to products without a power amplifier or low-noise amplifier. The product has been certified by authoritative international organizations such as FCC, CE, and RoHS, and uses an industrial-grade, high-precision 16MHz crystal oscillator. Since the E01-ML01SP2 is a pure RF transceiver module, it requires an MCU driver or a dedicated SPI debugging tool for operation.
