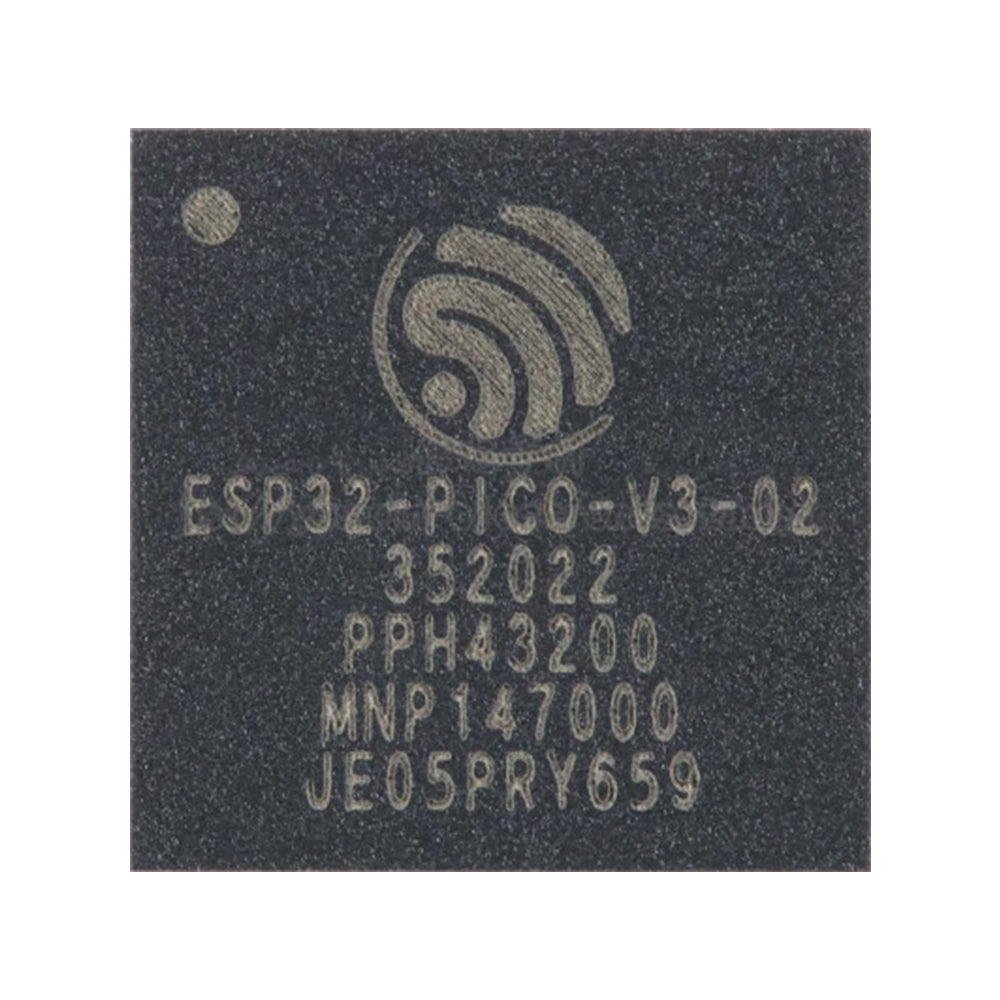

ESP32-PICO-V3-02

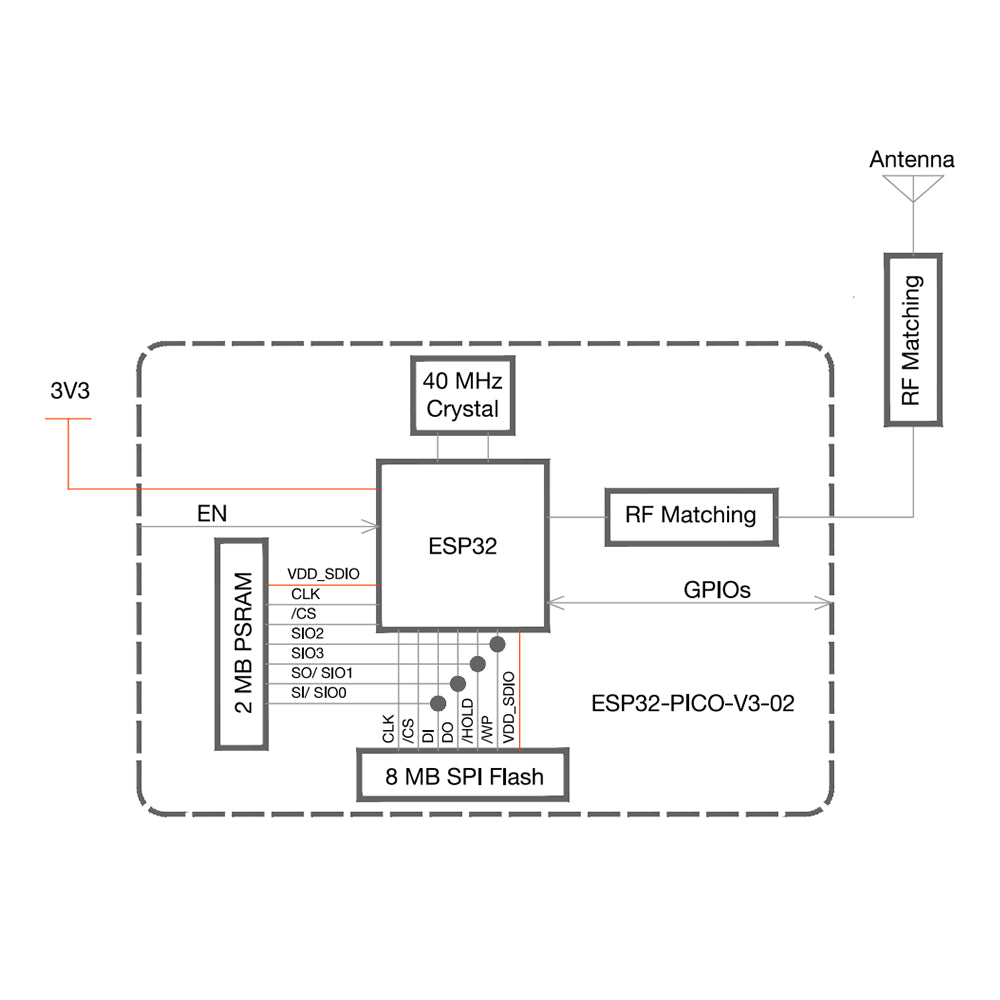

The ESP32-PICO series is a System-in-Package (SiP) device that is based on the ESP32 SoC. TheESP32-PICO series include ESP32-PICO-D4, ESP32-PICO-V3, and ESP32-PICO-V3-02 variants. In thisdocument, unless otherwise stated, “ESP32-PICO” refers to all the variants.ESP32-PICO provides Wi-Fi 802.11b/g/n, Bluetooth® v4.2 BR/EDR, and Bluetooth LE functionalities. Itintegrates all peripheral components seamlessly in a single package, including a crystal oscillator, filtercapacitors, SPI flash/PSRAM (optional), and RF matching circuit. ESP32-PICO is built in an ultra-small size, withrobust performance and low energy consumption. It is well suited for any space-limited or battery-operatedapplications, such as wearable electronics, medical equipment, sensors, and other IoT products.The ESP32-PICO series of variants are similar to each other, but still vary in some aspects, for example, theembedded chip revision, pin layout, dimensions, etc. Table 1 lists the differences between these variants. Fordetailed description please go to specific sections.

Download the data sheet：

https://cdn.shopify.com/s/files/1/0746/3033/2658/files/esp32-pico-mini-02_datasheet_en.pdf?v=1743141573
