GT-24

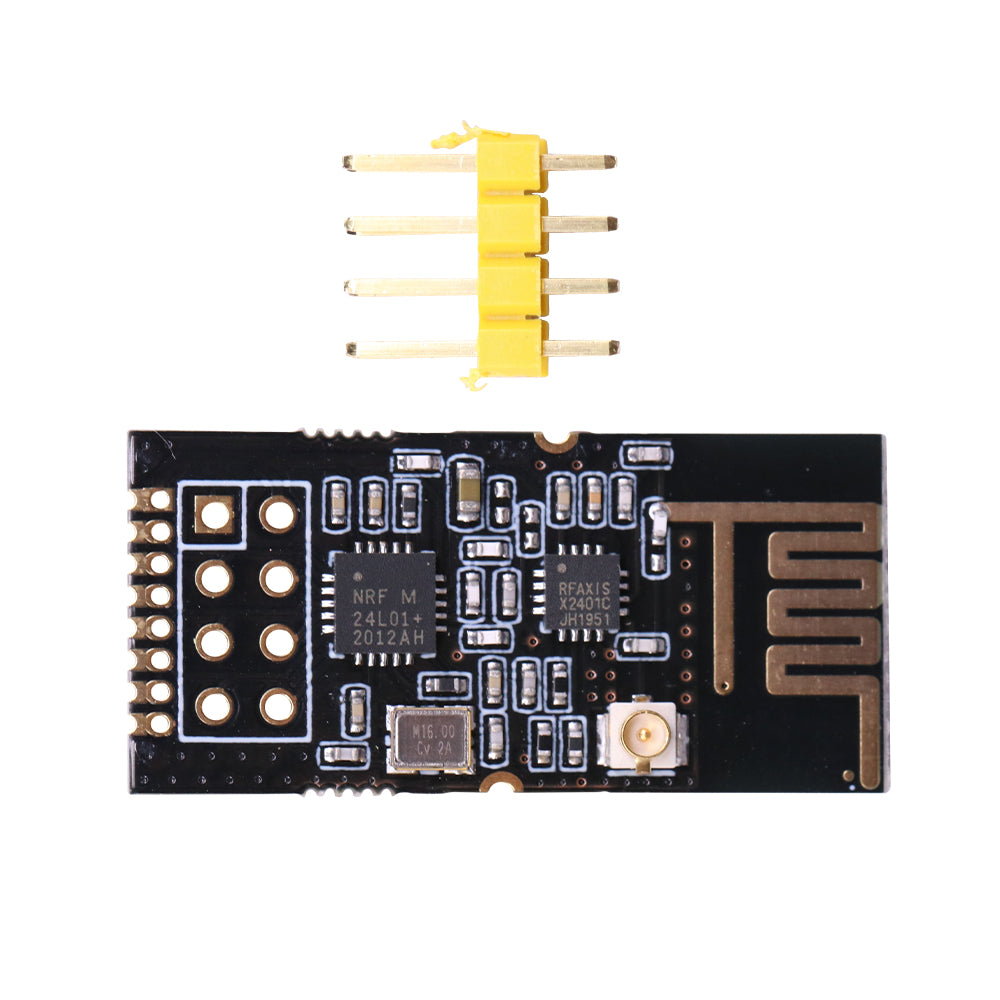

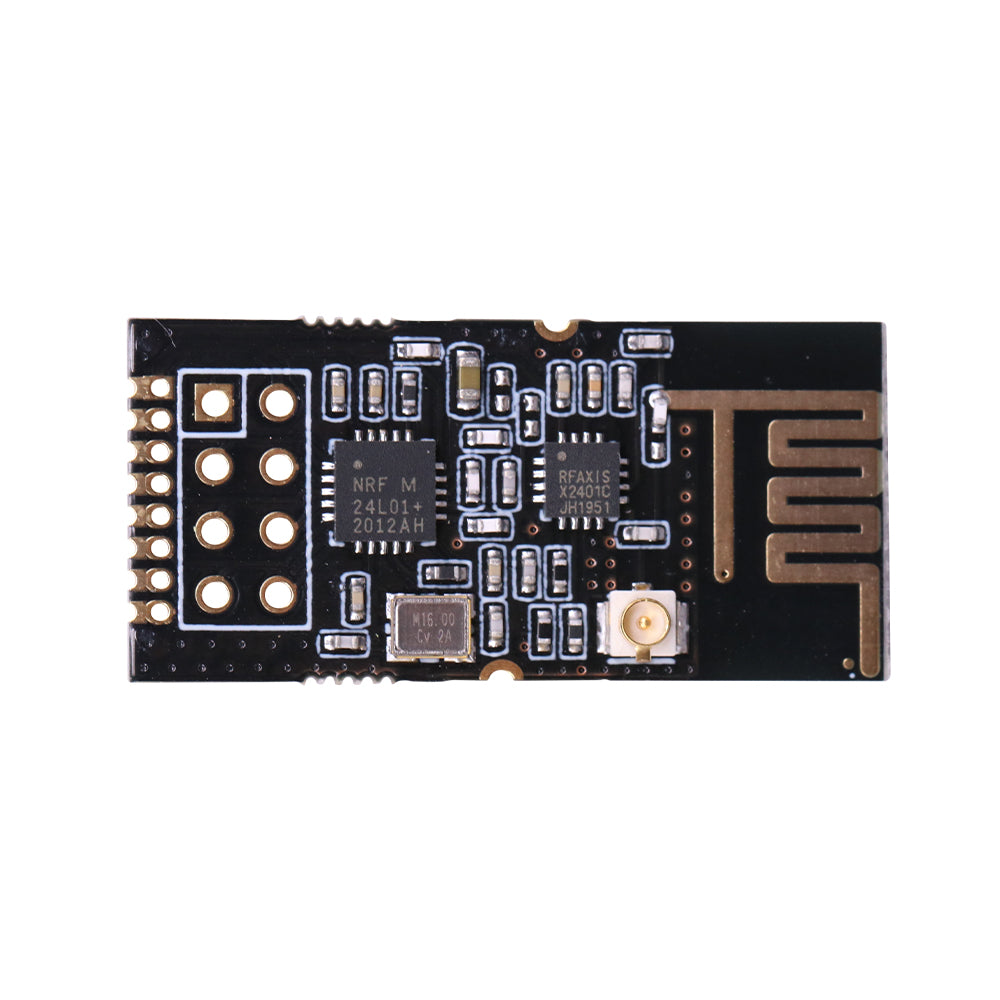

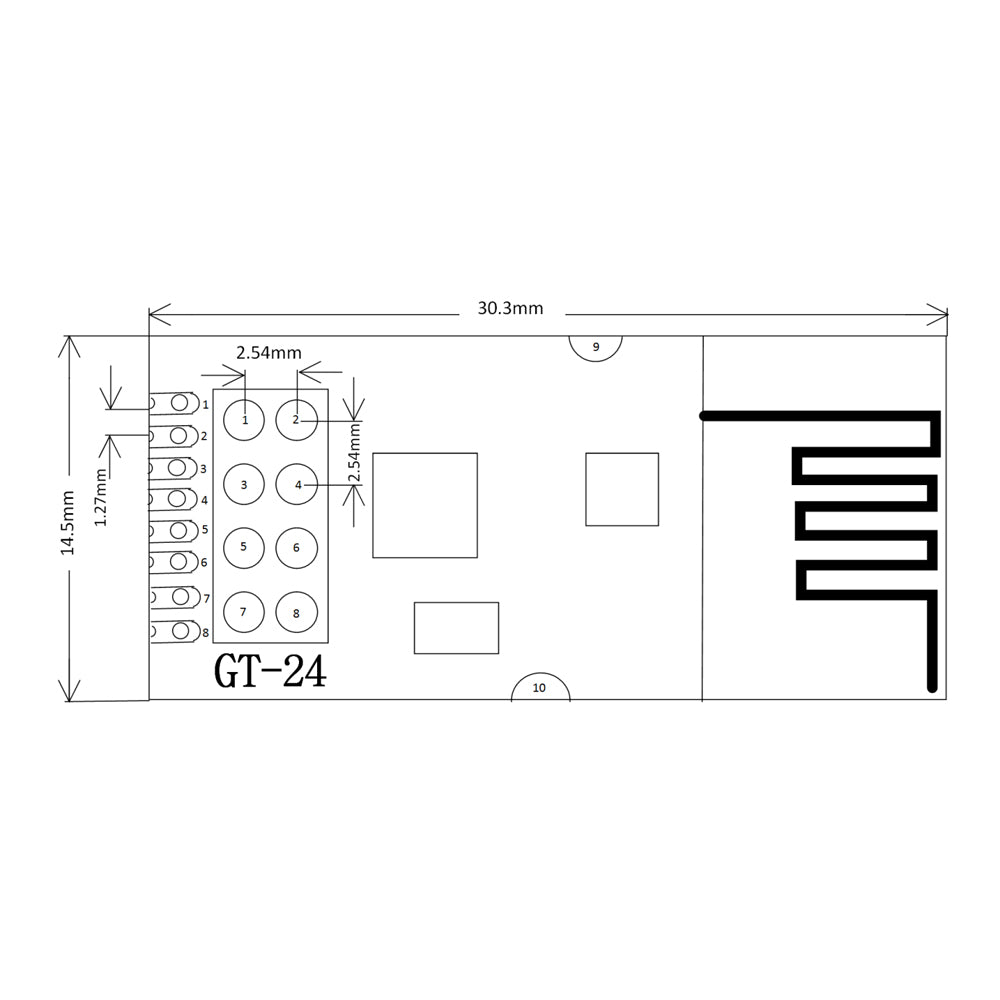

The GT-24 module is a 2.4GHz, 100mW high-speed (with a maximum air data rate of 2Mbps), high-stability, industrial-grade wireless transceiver module. The module comes with a high-performance PCB antenna, featuring precise impedance matching. It uses the SI24R1 RF chip, offering higher reliability, more power levels, longer transmission distances, and lower power consumption compared to the nRF24L01. Additionally, it includes the AT2401C power amplifier chip and an integrated LNA, improving receiving sensitivity by 10dBm. The module operates in the 2.4GHz to 2.5GHz ISM frequency band. It delivers sufficient transmission power, excellent spectral characteristics, low harmonics, minimal channel crosstalk, and has an ultra-compact size. All components are made with Murata’s original materials, representing industrial-grade standards. The module also features both a standard 2.54mm pitch through-hole interface and a 1.27mm pitch SMD interface, allowing users to easily integrate it into various circuits. Moreover, the GT-24 module comes with both an integrated PCB antenna and an IPEX connector for an external antenna, significantly enhancing the module's versatility and providing users with maximum flexibility.

https://cdn.shopify.com/s/files/1/0746/3033/2658/files/GT-24.pdf?v=1743127576
