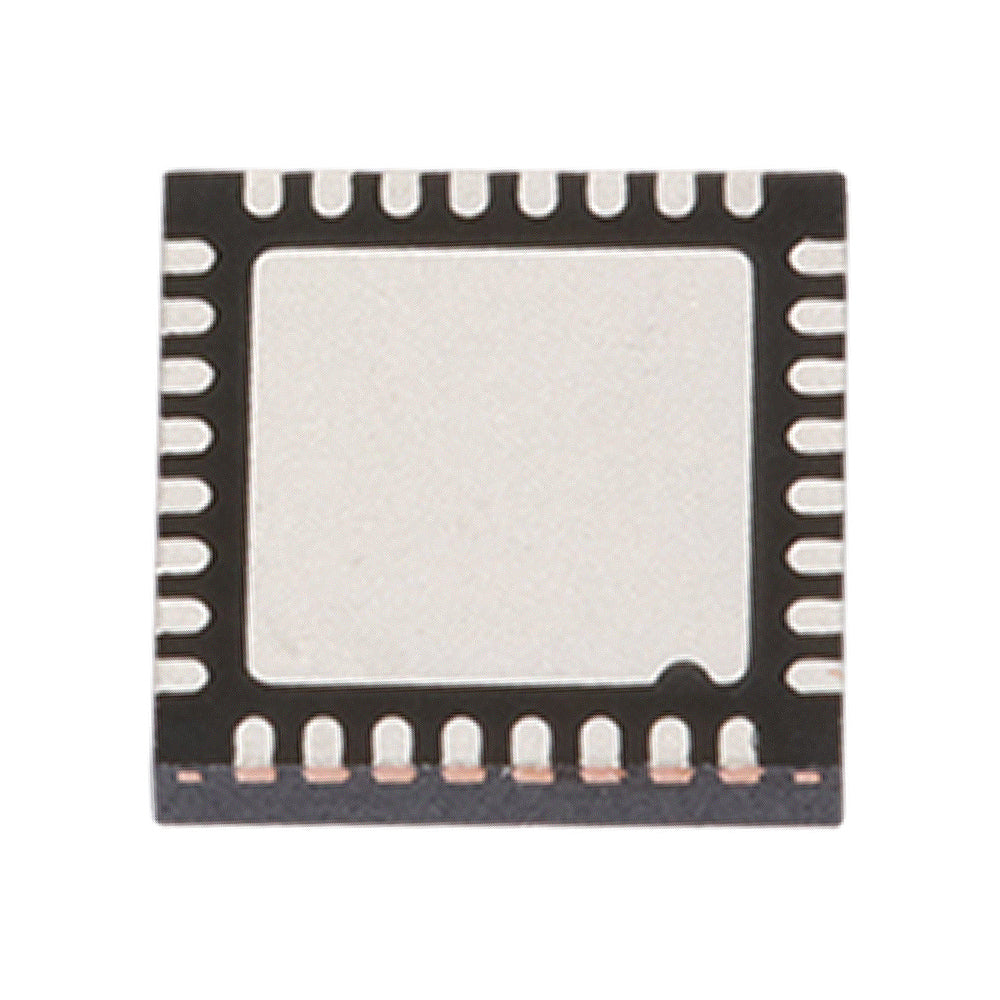

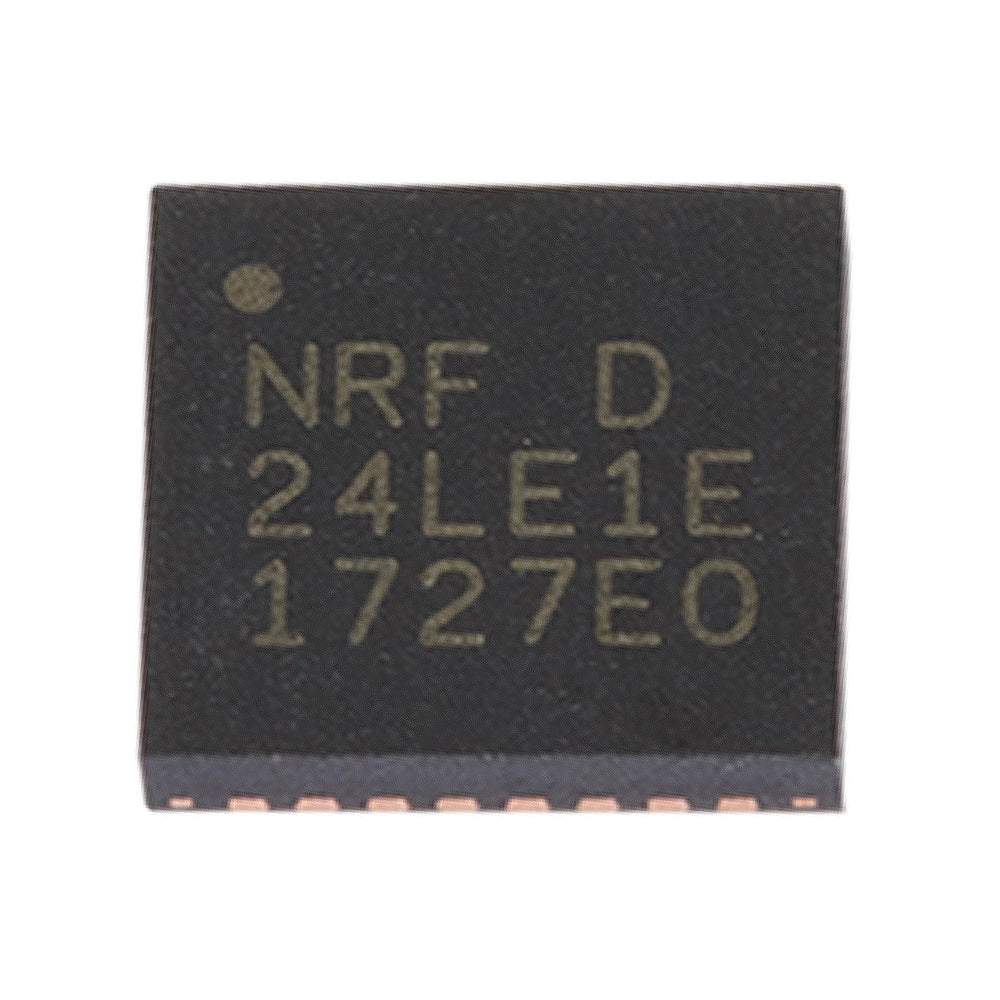

NRF24LE1F16Q32

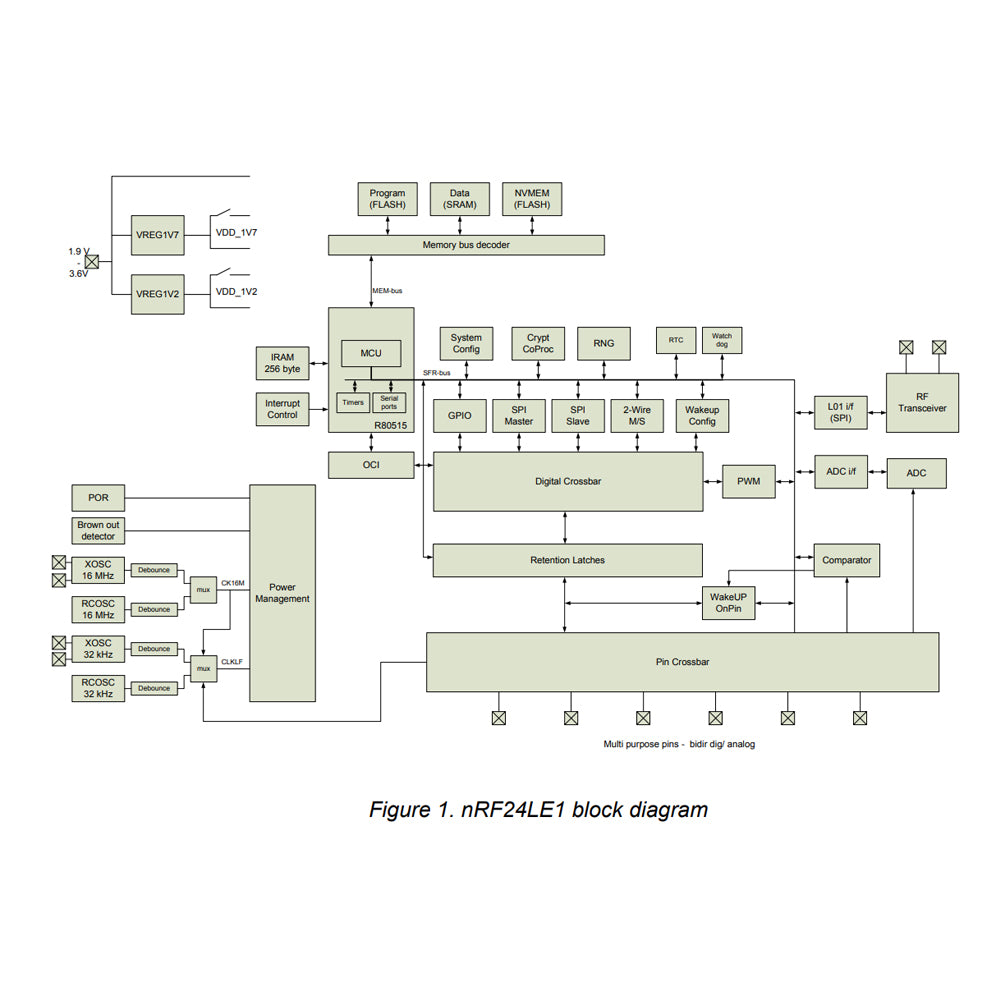

The nRF24LE1 is a member of the low-cost, high-performance family of intelligent 2.4 GHz RF transceivers with embedded microcontrollers. The nRF24LE1 is optimized to provide a single chip solution for ULPwireless applications. The combination of processing power, memory, low power oscillators, real-timecounter, AES encryption accelerator, random generator and a range of power saving modes provides anideal platform for implementation of RF protocols. Benefits of using nRF24LE1 include tighter protocol timing, security, lower power consumption and improved co-existence performance. For the application layerthe nRF24LE1 offers a rich set of peripherals including: SPI, 2-wire, UART, 6 to 12 bit ADC, PWM and anultra low power analog comparator for voltage level system wake-up.

The nRF24LE1 comes in three different package variants:
• An ultra compact 4×4mm 24 pin QFN (7 generic I/O pins)

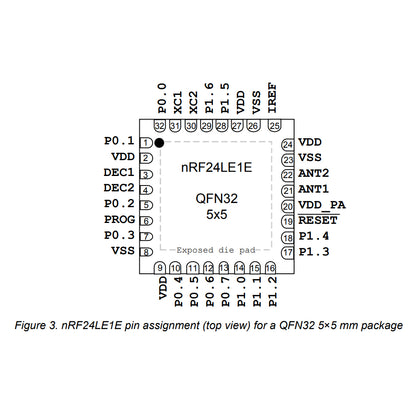

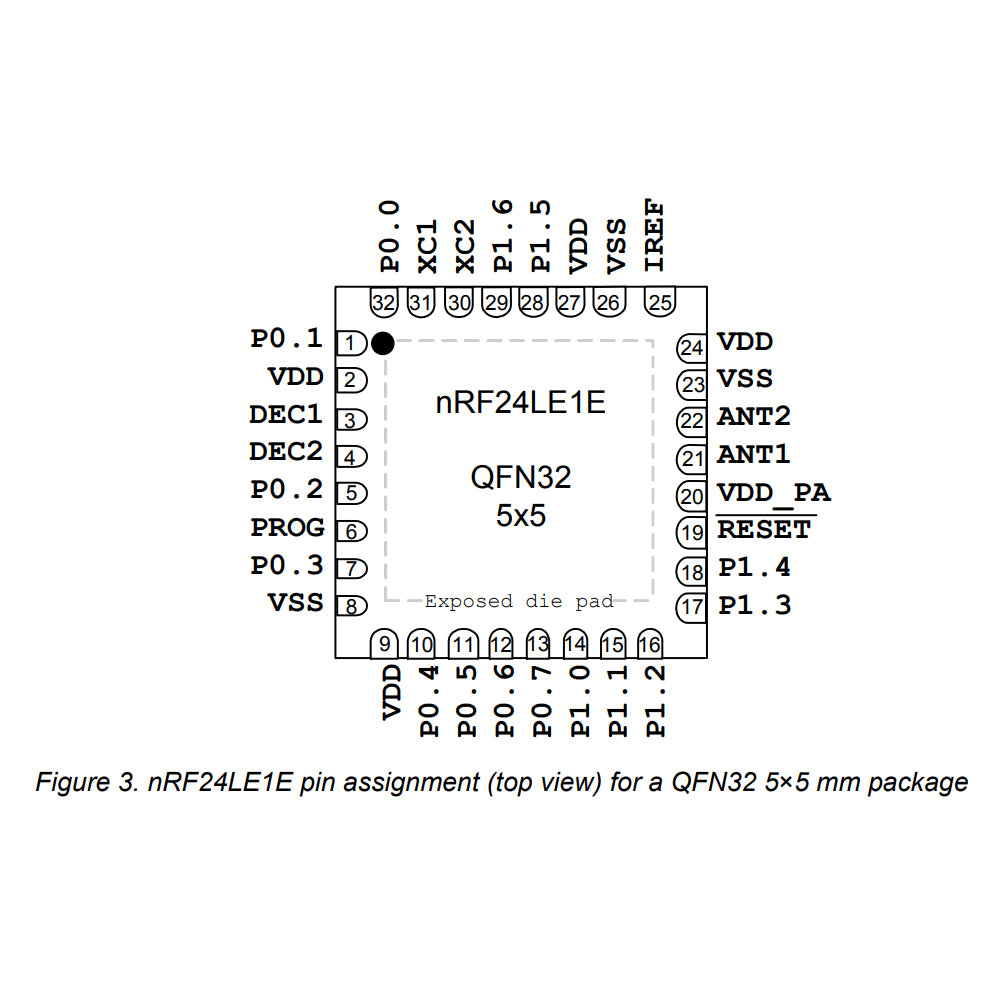

• A compact 5×5mm 32 pin QFN (15 generic I/O pins)
• A 7×7mm 48 pin QFN (31 generic I/O pins)

The 4×4mm 24 pin QFN is ideal for low I/O count applications where small size is key. Examples includewearable sports sensors and watches. The 5×5mm 32 pin QFN is ideal for medium I/O count applicationssuch as wireless mouse, remote controls and toys. The 7×7mm 48 pin QFN is designed for high I/O countproducts like wireless keyboards.

Download the data sheet：

https://cdn.shopify.com/s/files/1/0746/3033/2658/files/nRF24LE1_PS_v1.6.pdf?v=1742973965
